Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Tín hiệu 5G gây nhiễu | Năng lượng đầu ra: | 103W |
|---|---|---|---|
| Bán kính gây nhiễu: | 10-100meters @depends về cường độ tín hiệu | Nguồn cung cấp điện: | AC110-240V đến DC24V |
| Kích thước: | 380x280x 130mm （không bao gồm ăng -ten） | Trọng lượng: | appr.5.0kg |

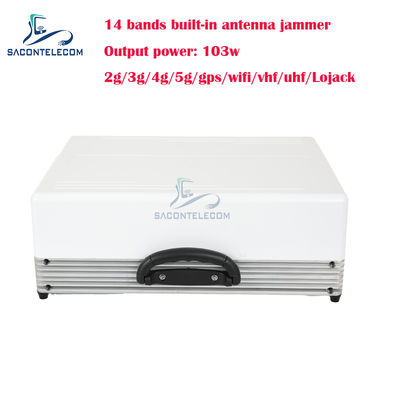

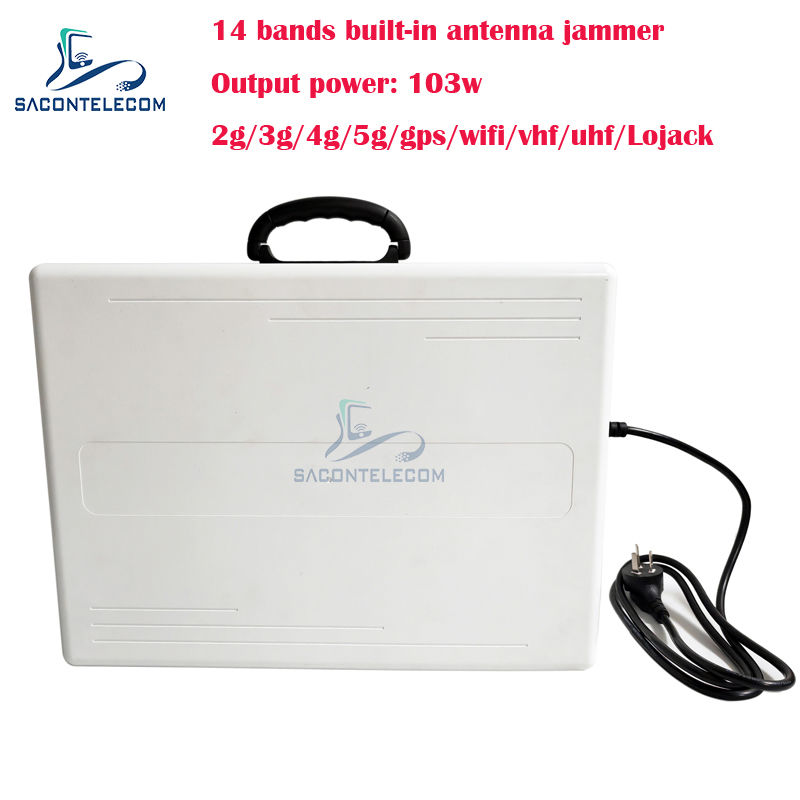

14 bands 103w Mobile Phone Signal Jammer Built in Antennas
Descriptions:
The latest design all-in-one powerful cellphone 5G 5G WIFI GPS UHF/VHF signal jammer is designed with hidden high gains 14 directional antennas which bring us a strong jamming ability. And it can not only cut off all GSM CDMA 3G 4G 5G mobile phone signals, but also jam GPS WiFi2.4G CDMA450M GPS LOJACK UHF VHF LORA signals. 103 watts high power can be jamming up to 80 meters at most depending on the signal strength in the detailed place. Built-in 4 Cooling Fans non-stop working. Handel portable put on the desk or install on wall using.
Features:
1. 14 chancel with 2-10dib hidden directional antennas design, Handel portable put on the desk or install on wall using;
2. 5-10 watt each band High output power, Total up to: 103W, jamming up to 80m (Still depends on the strength signal in given area);
3. Build-in AC110-240V to 24V adapter, Safe and easily use;
4. Built-in good cooling system inside 4 fans, Working non-stopped;
5. Independent module design with frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer);
6. Option: Build in battery working 1hours and external adapter of AC to DC;
7. Option: 2-5meters with Infrared Remote Control Turn ON /OFF Power;
8. Option: Control Software (All units have individual digital ID to identify them through the PC workstation.The wireless data will travel to converter in main office and then convert to RS485 or RJ45 so it can then communicates with a PC workstation computer.The software can turn on/off, each jammer or the whole jammer system).
Specifications:
| Key technical specifications: SA-D14 for worldwide | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | 4G700/800 | 700-821 MHz | 10W |
| 2 | CDMA/868/GSM/915/LORA | 850-960 MHz | 10W |
| 3 | DCS/PCS | 1805-2000 MHz | 8W |
| 4 | 3G2100 | 2110-2180 MHz | 8W |
| 5 | 4G2300/WIFI2.4G | 2300-2485 MHz | 8W |
| 6 | 4G2600 | 2500-2690 MHz | 8W |
| 7 | 5G600 | 617-698 MHz | 10W |
| 8 | 5G1500/GPSL1 | 1427-1610 MHz | 5W |
| 9 | 5G3300/3500 | 3300-3600 MHz | 8W |
| 10 | 5G3700 | 3600-3900 MHz | 8W |
| 11 | WIFI5G | 5125-5850 MHz | 5W |
| 12 | VHF/LOJACK | 135-175 MHz | 5W |
| 13 | UHF/433 | 400-480 MHz | 5W |
| 14 | GPSL2L3L4L5 | 1170-1390 MHz | 5W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC) | |||
|
Dimensions: (length ,width, height) 380x 280x 130mm Build-in 2-10dbi high gains directional antennas |
|||
| Packing size: 485x350x185mm N.W: 4.8kg Gross weight: 6.0kg | |||
| Total power:103W Shielding distance: (10-100) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters |
|||
| Warranty: one year from delivery date | |||
Packing Lists:
1pcs fixed mobile signal jammer
1pcs AC Plug
2pcs Screws installed on wall
